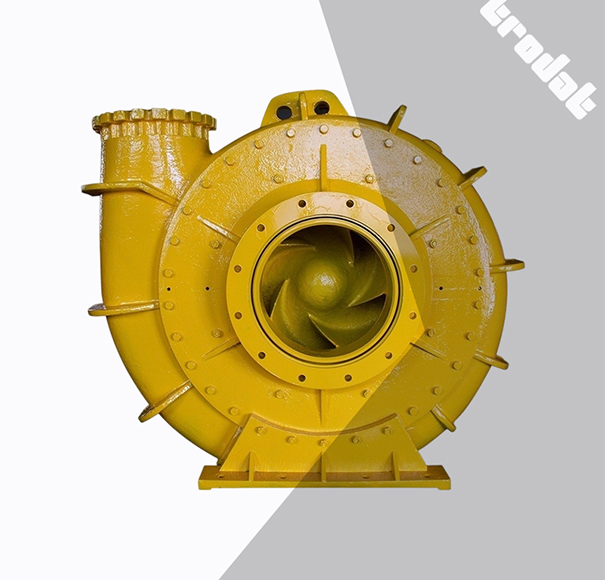

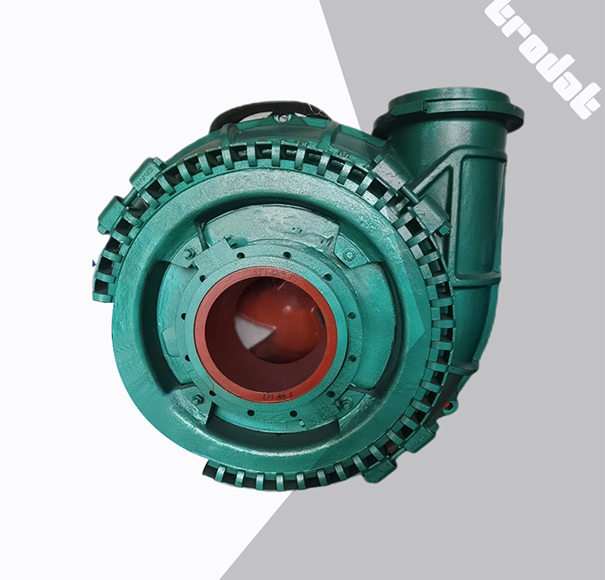

Dredging pump is the core power equipment ofdredger, mainlyused for suction and dischargingofsediment.
WN series dredging pump is centrifugal pump, which generates negative pressure suction throughthe high-speed rotation ofthe impeller, to achieve ahigh concentration of transportation.
Advantages
- Dredging efficiency: dredging outputup to 25000 m3/hour, customized available.Wear.
- resistant design: high chrome alloyimpeller and liner are used to extend the service life ofthe pump especiallyunder rough working conditions.
- Intelligent control: optional integrated frequencyconversion speed control and real-timemonitoring system to optimize energyconsumption and ensure stable operation ofwholeequipment.
- Environmentallyfriendlydredging:low-disturbance mud suction design reduces secondarypollution ofthe water body, speciallysuitable for ecologically sensitive areas.
Fit Applications
- work with the cutter installation to realize the integration ofthe whole work of “cuttingsuction-transportation” ,discharging mud through pipeline for cutter suction dredger.
- loading mud into cargo hold for’TSHD(trailing suction hopper dredger).
| Model No. | Flow Rate (m³/h) |
Head (m) |
Speed (r/min)
|
Efficiency (%) | NPSH (m) | Inlet Diameter (mm) | Outlet Diameter (mm) | Max Diameter of Particular in Water (mm) |
|---|---|---|---|---|---|---|---|---|
| TDSP-WN-200-1 | 600-800 | 20-40 | 700-900 | 60-65 | <4.5 | 250 | 200 | 200 |
| TDSP-WN-200-2 | 750-1000 | 40-65 | 700-850 | 70-72 | <4 | 250 | 200 | 200 |
| TDSP-WN-250-1 | 950-1100 | 20-40 | 500-700 | 65-70 | <4 | 300 | 250 | 250 |
| TDSP-WN-250-2 | 1100-1300 | 40-65 | 500-650 | 70-74 | <4 | 350 | 250 | 250 |
| TDSP-WN-300-1 | 1500-1800 | 20-40 | 400-600 | 65-68 | <4 | 350 | 300 | 300 |
| TDSP-WN-300-2 | 1800-2200 | 40-65 | 400-550 | 74-78 | <4 | 450 | 300 | 300 |
| TDSP-WN-350 | 2600-3000 | 40-65 | 400-550 | 74-78 | <4.5 | 450 | 350 | 350 |
| TDSP-WN-400 | 2800-3200 | 20-40 | 400-550 | 74-78 | <4.5 | 450 | 400 | 400 |
| TDSP-WN-450 | 3200-3850 | 40-67 | 350-500 | 76-80 | <4.5 | 600 | 450 | 450 |
| TDSP-WN-500-1 | 3600-4200 | 20-40 | 220-320 | 72-75 | <4.8 | 600 | 500 | 500 |
| TDSP-WN-500-2 | 4500-5500 | 40-65 | 350-450 | 78-80 | <4.8 | 650 | 500 | 500 |
| TDSP-WN-600-1 | 7000 | 62 | 470 | 80 | <6 | 700 | 600 | 600 |
| TDSP-WN-600-2 | 7000 | 30 | 380 | 83 | <6 | 700 | 600 | 600 |
| TDSP-WN-700-1 | 10000 | 85 | 380 | 85 | <6 | 760 | 700 | 700 |
| TDSP-WN-700-2 | 10000 | 28 | 280 | 85 | <6 | 760 | 700 | 700 |
| TDSP-WN-800-1 | 12500 | 59 | 349 | 81 | <6 | 800 | 750 | 750 |
| TDSP-WN-800-2 | 12500 | 32 | 258 | 81 | <6 | 800 | 750 | 750 |
| TDSP-WN-800-3 | 12500 | 32 | 258 | 81 | <6 | 800 | 750 | 750 |
| TDSP-WN-850 | 14400 | 70 | 330 | 85 | <6 | 900 | 850 | 850 |
| TDSP-WN-900 | 16000 | 30 | 175 | 85 | <6 | 1000 | 900 | 900 |
| TDSP-WN-1000 | 16000-25000 | 23-76 | 181-290 | 85-87 | <6 | 1200 | 1000 | 1000 |
..Get Every Answers..
Ask Question
We supply dredging equipment including dredging pump, diesel engine, marine gearbox, transfer case, hydraulic pump station, hydraulic winch, electric winch, marine electric motor,windlass, instrument, monitoring system, and outfitting as steel rope, anchor, bollard,chain for mooring and towing.
Also special device as sediment production measurement system, navigation system can be provided as customized requirements.
We design and match dredging equipment for repair and maintenance of old dredgers, new dredgers which are built in your local shipyard, and dredgers we design and provide for your owners.
We supply diesel engine brands CUMMINS, CATERPILLAR, MITSUBISHI, MAN，WEICHAI,YUCHAI, ZICHAI,NINGBO ZHONGCE and others.
Yes, we participate dredging and engineering related exhibitions, such as BAUMA CHINA.
Our office is in Weifang city, Shandong province and we are opening offices in other cities which will be updated. Our factories of dredging equipment including engine, dredging pump, hydraulic winch, engine cooler locate in Weifang, Shanghai, Nantong and other cities.
We generally accept T/T, L/C. We can give financial support in term of L/C 90days or 120days.
Yes, we can send our engineer to project site for installation supervision and training service. There will be a separate technical service agreement which list technical service range, how many days and how many engineers and workers. Generally 15days, and 2 engineers for installation supervision is enough.
Project owner will also take charge of round ticket, VISA, transportation, food and accommodation in the country of project site for engineers and workers who will be involved in the technical service.
