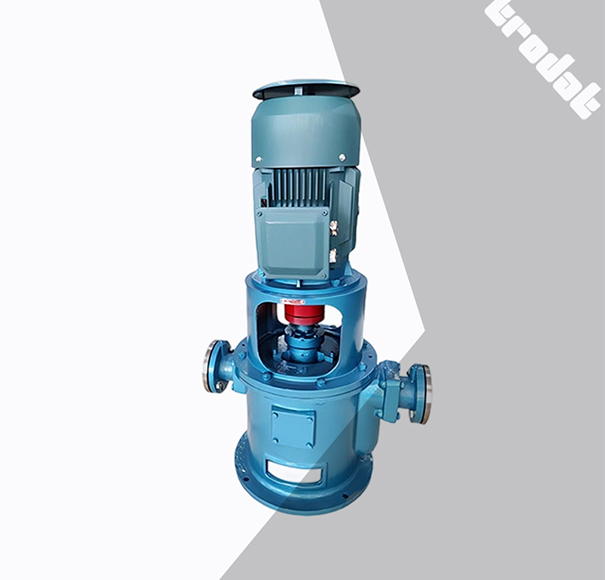

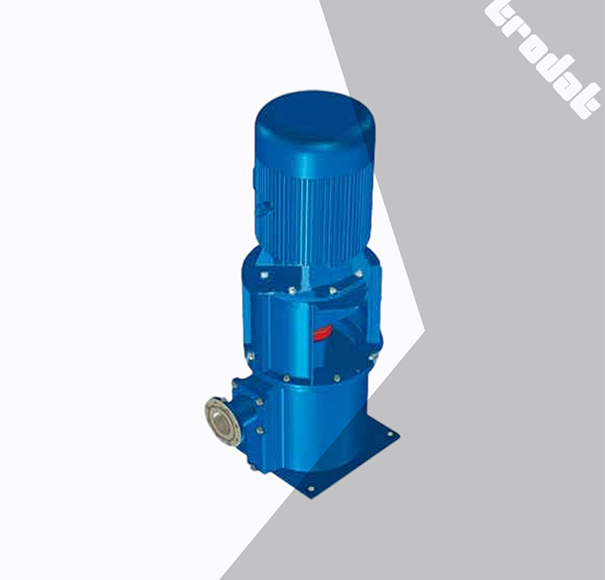

- The pump is a vertical structure with the same inlet and outlet diameters and is located onthe same centerline, it can be installed in the pipeline like a valve, with a compact and beauti-ful appearance, small footprint,and low installation investment. if the motor is equipped with aprotective cover,it can be placed outdoors for use.
- The shaft seal adopts mechanical seal. Sealing surface material: The static ring is made ofintegral alloy or silicon carbide, and the dynamic ring is made of graphite, with a service lifeof generally more than one year.
- Easy installation and maintenance, without the need to dismantle the pipeline system, allrotor components can be extracted by removing the pump bracket nuts.
- The series and parallel operation of pumps can be adopted according to the usage requirements.such as flow rate and head.
- The pump can be installed vertically or horizontally according to the requirements of pipelinelayout.
| Model NO. | BLN |
|---|---|
| Type | Self-priming Pump With Outer Recirculation |
| Air Engine Type | Fitted Motor |
| Theory | Water Ring Type |
| Transmission | Direct Connection Transmission |
| Structure | Outer Slide |
| Flow | 10-3000m3/H |
| Head | 5m-125m |
| Impeller | Closed |
| Position of Pump Shaft | Horizontal Pump |
| Working Pressure | Low Pressure Pump |
| Impeller Number | Single-Stage Pump |
| Driving Type | Motor |
| Certification | ISO,CE |
| Transport Package | Plywood Box |
| Specification | 800*500*500mm |
| Trademark | Belloni |
| Origin | China |
..Get Every Answers..
Ask Question
We supply dredging equipment including dredging pump, diesel engine, marine gearbox, transfer case, hydraulic pump station, hydraulic winch, electric winch, marine electric motor,windlass, instrument, monitoring system, and outfitting as steel rope, anchor, bollard,chain for mooring and towing.
Also special device as sediment production measurement system, navigation system can be provided as customized requirements.
We design and match dredging equipment for repair and maintenance of old dredgers, new dredgers which are built in your local shipyard, and dredgers we design and provide for your owners.
We supply diesel engine brands CUMMINS, CATERPILLAR, MITSUBISHI, MAN，WEICHAI,YUCHAI, ZICHAI,NINGBO ZHONGCE and others.
Yes, we participate dredging and engineering related exhibitions, such as BAUMA CHINA.
Our office is in Weifang city, Shandong province and we are opening offices in other cities which will be updated. Our factories of dredging equipment including engine, dredging pump, hydraulic winch, engine cooler locate in Weifang, Shanghai, Nantong and other cities.
We generally accept T/T, L/C. We can give financial support in term of L/C 90days or 120days.
Yes, we can send our engineer to project site for installation supervision and training service. There will be a separate technical service agreement which list technical service range, how many days and how many engineers and workers. Generally 15days, and 2 engineers for installation supervision is enough.
Project owner will also take charge of round ticket, VISA, transportation, food and accommodation in the country of project site for engineers and workers who will be involved in the technical service.
