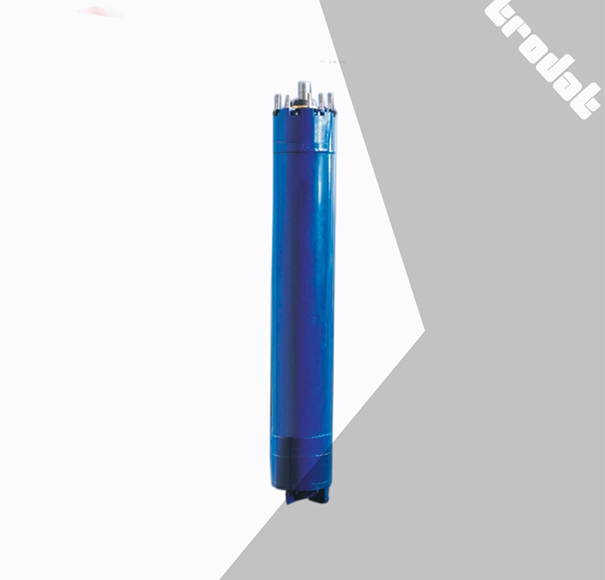

Submersible Seawater Pump 3

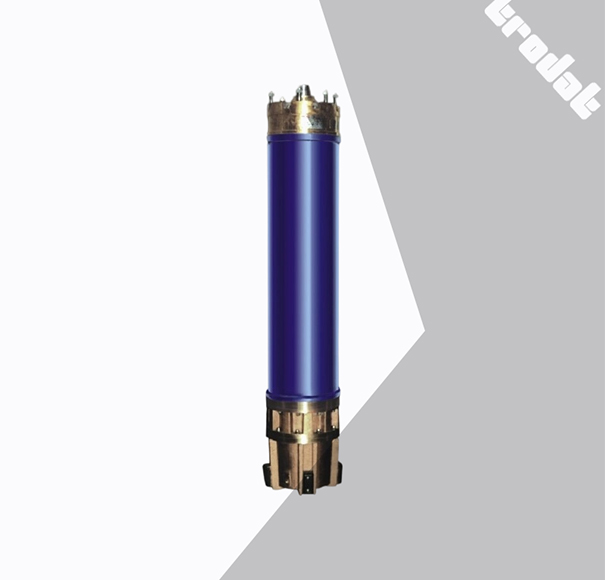

Submersible Seawater Pump 2

Submersible Seawater Pump

Chat Now Message Email
Tag : dredger Categories : Dredging Pump

TDSP-HB series water (seawater)submersible pump shall be used as water submersible pump to lift water from well,and as seawa-ter lift pump to lift seawater or other similar corrosive liquid.The electric submersible pump shall be suitable for operating in water,seawater or similar corrosive medium containing sand,marine living things.



There shall be a series of advantages,such as compact structure,less land occupation,no need of pump house,noiseless,easy to realize auto control and monitoring and management of internet of things etc.It is ideal equipment to supply water in municipal works,mine,offshore platform,shipyard and similar operating mode.

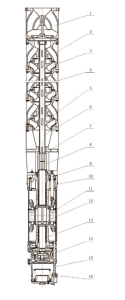

Structure

1 Check Valve

2 Casing

3 Impeller

4 Shaft Sleeve

5 Seal Ring

6 Shaft

7 Inlet Segment

8 Coupling

9 Mechanical Seal Or Oil Seal

10 Upper Guide Bearing

11 Stator

12 Rotor

13 Lower Guide Bearing

14 Thrust Bearing

15 Base

16 Rubber Regulating Airbag



Main Parameters of TDSP-HB Submersible Seawater Pump



Model No. Flow
(m3/h)		 Head
(m)		 Speed
(r/min)		 Eff
(%)		 Power
(kW)		 Freq
(Hz)		 Max Diameter
(mm)
200HB7-30
200HB7-40
200HB7-50
200HB7-60
200HB7-70
200HB7-80
200HB7-90
200HB7-100
200HB7-110
200HB7-120
200HB7-130		 7 30
40
50
60
70
80
90
100
110
120
130		 1750 58 1.7
1.7
2.2
3
3
4
4
5.5
5.5
5.5
5.5		 60 147
300HB34-30
300HB34-40
300HB34-50
300HB34-60
300HB34-70
300HB34-80
300HB34-90
300HB34-100
300HB34-110
300HB34-120
300HB34-130		 34 90
100
110
120
130		 1750 60 7.5
9.2
15
15
15
18.5
18.5
22
22
25
25		 60 250
300HB100-16/1
300HB100-32/2
300HB100-48/3
300HB100-64/4
300HB100-80/5
300HB100-96/6
300HB100-122/7
400HB100-128/8
400HB100-144/9
400HB100-160/10
400HB100-176/11
400HB100-192/12		 100 16
32
48
64
80
96
112
128
144
160
176
192		 1750 72 9.2
15
22
30
37
44
52
70
70
87
87
100		 60 253
290
300HB120-14/
300HB120-28/2
300HB120-42/3
300HB120-56/4
300HB120-70/5
300HB120-84/6
300HB120-98/7
400HB120-112/8
400HB120-126/9
400HB120-140/10
400HB120-154/11
400HB120-168/12		 120 14
28
42
56
70
84
98
112
126
140
154
168		 1750 72 9.2
18.5
25
33
42
52
55
70
70
87
87
100		 60 253
290
350HB140-13/1
350HB140-26/2
350HB140-39/3
350HB140-52/4
350HB140-65/5
350HB140-72/6
400HB140-91/7
400HB140-104/8
400HB140-117/9
400HB140-130/10
400HB140-143/11
450HB140-156/12		 140 13
26
39
52
65
72
91
104
117
130
143
156		 1750 72 9.2
18.5
25
37
44
52
70
70
87
87
100
120		 60 253
290
360
