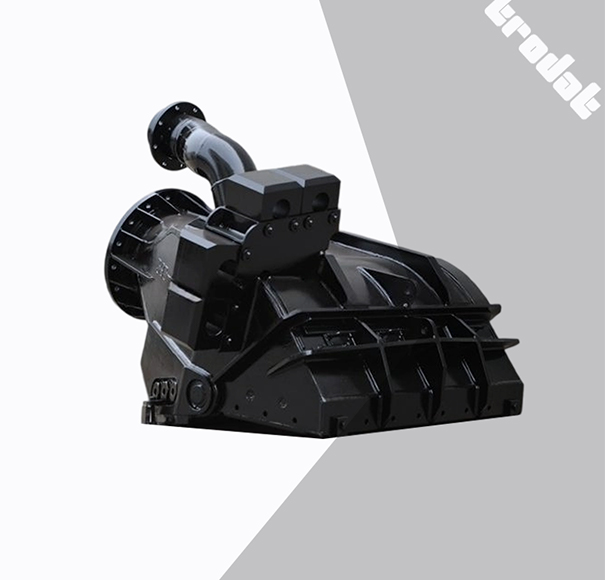

The drag head is the suction port of TSHD (trailing suction hopper dredger) with dredging pump, as the core component of the dredging device assembly.

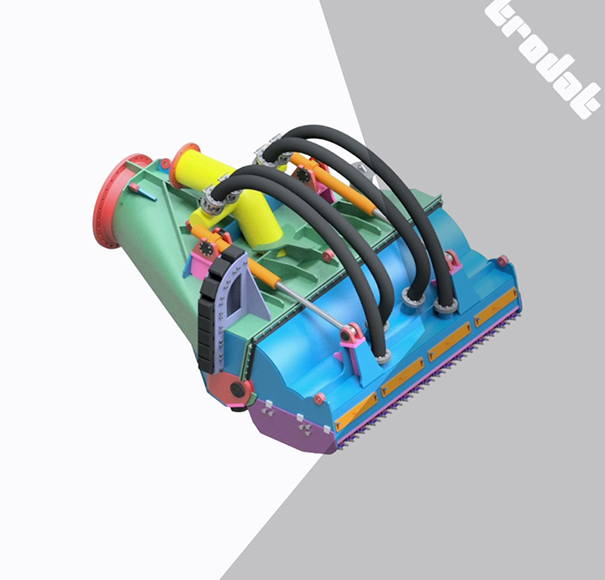

This type of drag head fit movable cover, jaw plates has 2 parts, which is able to adjust suction gap and make slurry density at proper level. When excessive resistance by obstruction occurs, the safety pin breaks, back jaw plat will rise and drag head is detached.
This drag head is suitable for dredging mud, coarse sand, loose sand. It has not enough suction force for fine sand.
| No | Diameter of Suction Pipe
D(mm) |
Length of Drag head L(mm) | Length of Movable Part
L1(mm) |
Width of Drag head B(mm) | Width of Movable Part
B1(mm) |
| 1 | 420 | 1300 | 1000 | 1600 | 1340 |
| 2 | 550 | 1525 | 1100 | 1800 | 1560 |
| 3 | 600 | 1560 | 1900 | 1850 | 1560 |
| 4 | 650 | 1900 | 1240 | 2650 | 2550 |
| 5 | 700 | 1935 | 1255 | 2700 | 2600 |
| 6 | 7500 | 1950 | 1300 | 2810 | 2700 |
| 7 | 800 | 2000 | 1550 | 2940 | 2750 |
| 8 | 900 | 2350 | 1650 | 3200 | 2850 |
| 9 | 1000 | 2850 | 1760 | 3700 | 3250 |
| 10 | 1200 | 3300 | 1850 | 4240 | 3700 |
