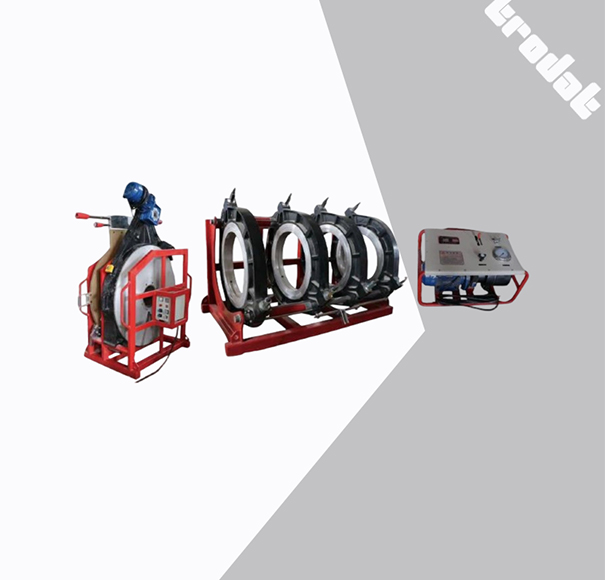

Plastic pipe welder machineHDPE hot melt welding machine
Tag :
dredger
Categories :
Special equipment for dredging maintenance
- The raw material of the machine frame is aluminum ZL104,it’s light but strong,is one of the best material of the machine.
- The main electrical parts elements are best in china,many are imported from a
- Removable PTFE coated heater with separate temperature control system,the temperaturecan be controlled to a minimum range.
- The cutter adopts powerful motor, special material of the blade, making the cutting effectmore perfect.
- The machine with simple structure can be operated by one person,it’s suitable for useunder complex conditions.
| Model | Welding Range (mm) | Heating Plate Temperature | Heating Plate Surface Temperature (170 – 250℃) | Operating Voltage | Heating Plate Power | Cutter Power | Total Power |
|---|---|---|---|---|---|---|---|
| SHBDST – 160 – 2 | 63 – 160 | 270℃ | < ±5℃ | 220V, 50Hz | 1.0Kw | 0.85Kw | 1.85Kw |
| SHBDST – 200 – 2 | 63 – 200 | 270℃ | < ±5℃ | 220V, 50Hz | 1.7Kw | 0.85Kw | 2.55Kw |
| SHBDSY – 160 – 2 | 63 – 160 | 270℃ | < ±5℃ | 220V, 50Hz | 1.0Kw | 0.85Kw | 1.85Kw |
| SHBDSY – 160 – 4 | 63 – 160 | 270℃ | < ±5℃ | 220V, 50Hz | 1.0Kw | 0.85Kw | 1.85Kw |
| SHBDSY – 200 – 2 | 63 – 200 | 270℃ | < ±5℃ | 220V, 50Hz | 1.7Kw | 0.85Kw | 2.55Kw |
| SHBDSY – 200 – 4 | 63 – 200 | 270℃ | < ±5℃ | 220V, 50Hz | 1.7Kw | 0.85Kw | 2.55Kw |
The parameters of product are subject to changes without prior notice
..Get Every Answers..
Ask Question
We supply dredging equipment including dredging pump, diesel engine, marine gearbox, transfer case, hydraulic pump station, hydraulic winch, electric winch, marine electric motor,windlass, instrument, monitoring system, and outfitting as steel rope, anchor, bollard,chain for mooring and towing.
Also special device as sediment production measurement system, navigation system can be provided as customized requirements.
We design and match dredging equipment for repair and maintenance of old dredgers, new dredgers which are built in your local shipyard, and dredgers we design and provide for your owners.
We supply diesel engine brands CUMMINS, CATERPILLAR, MITSUBISHI, MAN，WEICHAI,YUCHAI, ZICHAI,NINGBO ZHONGCE and others.
Yes, we participate dredging and engineering related exhibitions, such as BAUMA CHINA.
Our office is in Weifang city, Shandong province and we are opening offices in other cities which will be updated. Our factories of dredging equipment including engine, dredging pump, hydraulic winch, engine cooler locate in Weifang, Shanghai, Nantong and other cities.
We generally accept T/T, L/C. We can give financial support in term of L/C 90days or 120days.
Yes, we can send our engineer to project site for installation supervision and training service. There will be a separate technical service agreement which list technical service range, how many days and how many engineers and workers. Generally 15days, and 2 engineers for installation supervision is enough.
Project owner will also take charge of round ticket, VISA, transportation, food and accommodation in the country of project site for engineers and workers who will be involved in the technical service.
