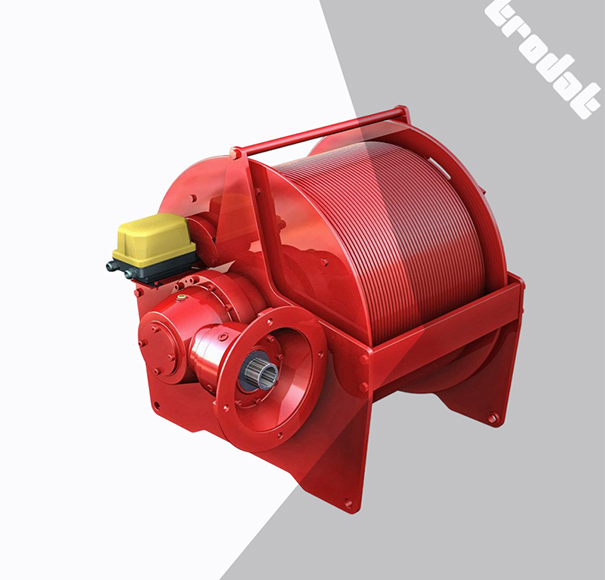

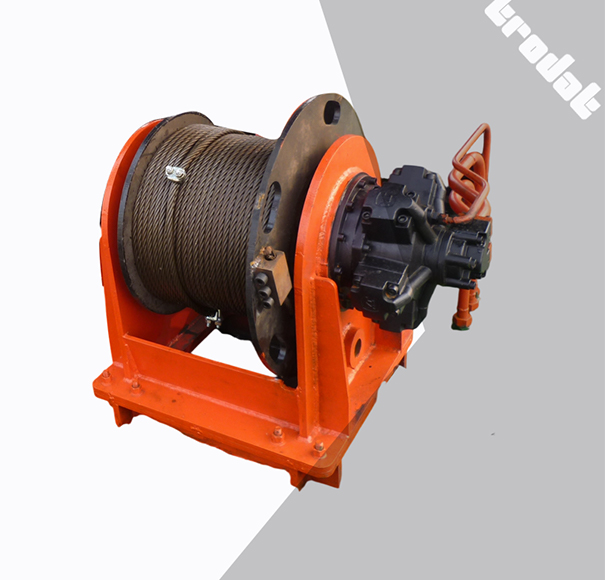

Hydraulic winch is composed of
- a variety of distributor including high-pressure shuttle valvewith a one-way balance valve and brake control.
- brake, gear reducer, reel, frame and other components.
- and pumping stations and reversing valves are prepared by user.
The winch comes with a valve group
- not only simplifies the hydraulic system and improve the reliability ofthe transmission device;
- successfully prevent the shaking problem when hook with no load and “second dip” during lifingwhich exists in the general winch, which makes sure smooth work.
| Model number |
TDHW-10 | TDHW-20 |
|---|---|---|
| First layer
lifting force(kn) |
10 | 20 |
| First layer
speed |
0-30 | 0-30 |
| diameter of reel (mm) |
238 | 238 |
| Total displacement (ml/r) | 575 | 1050 |
| Working pressure differential (mpa) | 15 | 15 |
| Diameter of steel wire (mm) |
10 | 20 |
| Rope capacity (m) |
60 | 50 |
..Get Every Answers..
Ask Question
We supply dredging equipment including dredging pump, diesel engine, marine gearbox, transfer case, hydraulic pump station, hydraulic winch, electric winch, marine electric motor,windlass, instrument, monitoring system, and outfitting as steel rope, anchor, bollard,chain for mooring and towing.
Also special device as sediment production measurement system, navigation system can be provided as customized requirements.
We design and match dredging equipment for repair and maintenance of old dredgers, new dredgers which are built in your local shipyard, and dredgers we design and provide for your owners.
We supply diesel engine brands CUMMINS, CATERPILLAR, MITSUBISHI, MAN，WEICHAI,YUCHAI, ZICHAI,NINGBO ZHONGCE and others.
Yes, we participate dredging and engineering related exhibitions, such as BAUMA CHINA.
Our office is in Weifang city, Shandong province and we are opening offices in other cities which will be updated. Our factories of dredging equipment including engine, dredging pump, hydraulic winch, engine cooler locate in Weifang, Shanghai, Nantong and other cities.
We generally accept T/T, L/C. We can give financial support in term of L/C 90days or 120days.
Yes, we can send our engineer to project site for installation supervision and training service. There will be a separate technical service agreement which list technical service range, how many days and how many engineers and workers. Generally 15days, and 2 engineers for installation supervision is enough.
Project owner will also take charge of round ticket, VISA, transportation, food and accommodation in the country of project site for engineers and workers who will be involved in the technical service.
