Ship crane and floating crane work because the water depth of the port is not deep enough, large ships can not directly dock to load and unload cargo, need to barge the cargo to the side of large ships, then need to use the ship crane or floating crane operation.
The so-called ship crane refers to the ship itself equipped with lifting equipment, while the floating crane is a special water lifting equipment.
When the lifting force of the ship crane is not enough, a floating crane with greater lifting force is needed to complete the loading and unloading task.

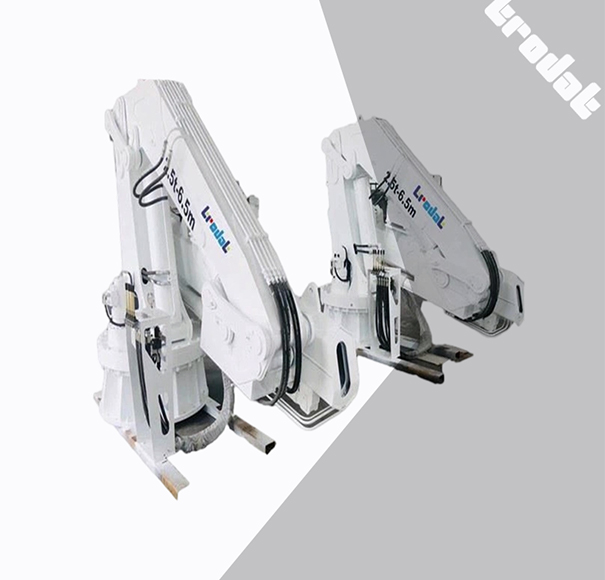

Marine crane configuration.
- Hydraulic system: full hydraulic servo control operating system, integrated hydraulic valve group single group independent operation (can realize compound action)
- Slewing system: 50 manganese calcined track flint tempered slewing support, four-way central slewing device (can achieve 360° continuous unlimited rotation)
- Winch system: 1.5t/2t hydraulic winch with automatic brake system
- Boom system: 8-sided boom 6.2m X 3/4 sections (fully automatic hydraulic cylinder telescopic)
- Expandable configuration: the hoisting system can be expanded with oil and electricity (11KW motor independent pump source)

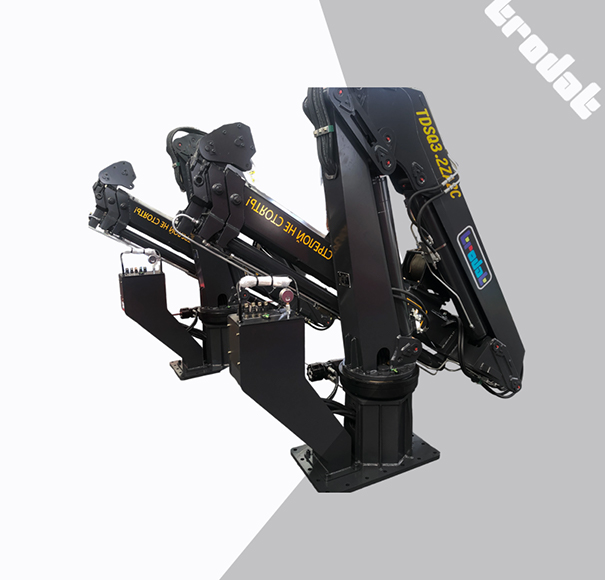

| Item | Unit | TDSQ3.2ZA2C |
|---|---|---|
| Maximum rated lifting mass | Kg | 3200 |
| MMaximum lifting torque | Ton.m | 6 |
| Maximum working range | m | 9.4 |
| Maximum lifting height (from the ground) | m | 11.3 |
| Oil tank capacity | L | 100 |
| Slewing angle | ° | 380 |
| Rated pressure of hydraulic system | MPa | 25 |
| Recommended fow of system | L/min | 25 |
| Weight of hydraulic crane | kg | 1050 |
..Get Every Answers..
Ask Question
We supply dredging equipment including dredging pump, diesel engine, marine gearbox, transfer case, hydraulic pump station, hydraulic winch, electric winch, marine electric motor,windlass, instrument, monitoring system, and outfitting as steel rope, anchor, bollard,chain for mooring and towing.
Also special device as sediment production measurement system, navigation system can be provided as customized requirements.
We design and match dredging equipment for repair and maintenance of old dredgers, new dredgers which are built in your local shipyard, and dredgers we design and provide for your owners.
We supply diesel engine brands CUMMINS, CATERPILLAR, MITSUBISHI, MAN，WEICHAI,YUCHAI, ZICHAI,NINGBO ZHONGCE and others.
Yes, we participate dredging and engineering related exhibitions, such as BAUMA CHINA.
Our office is in Weifang city, Shandong province and we are opening offices in other cities which will be updated. Our factories of dredging equipment including engine, dredging pump, hydraulic winch, engine cooler locate in Weifang, Shanghai, Nantong and other cities.
We generally accept T/T, L/C. We can give financial support in term of L/C 90days or 120days.
Yes, we can send our engineer to project site for installation supervision and training service. There will be a separate technical service agreement which list technical service range, how many days and how many engineers and workers. Generally 15days, and 2 engineers for installation supervision is enough.
Project owner will also take charge of round ticket, VISA, transportation, food and accommodation in the country of project site for engineers and workers who will be involved in the technical service.
