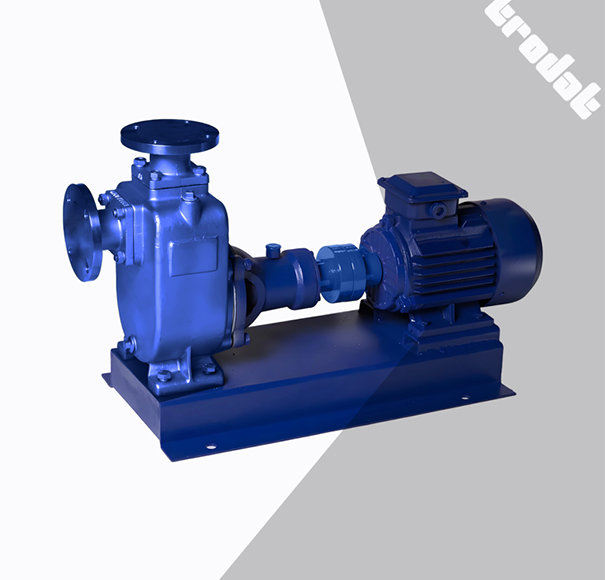

CYZ series self-priming centrifugal pump is a new modified centrifugal pump which is developed on the basis of absorbing domestic and international advanced technology of the same product based on many years of design and manufacturing experience of Chinese pump factories.
Its water pump series is applied for delivering fresh water, seawater and sewage water.
Its oil pump series is widely used to transport gasoline, kerosene, diesel oil, oil for aviation in oil warehouse, oil station, oil tanker, dock, tank truck, airdrome etc.
It can also be used in chemical industry, pharmaceutics, brewage, electroplate, printing and dyeing, paper making, electric power, mining .
Medium temperature range -20℃to 80℃, viscosity ≤100cP. Particles consistency can reach 30%.
The product has been inspected by the authorized surveyor to the Society and found to be compliance with GB/T3721-1995 standard and Chapter 2, Part 3 of CCS Rules for the Classification of Sea-going Steel Ships 2009.
Model Instruction
80CYZ1-A–22
80—Pump inlet diameter 80mm
C—marine pump
YZ— Self-priming
1— with “1” Power is 60Hz. Without “1” when it is 50Hz
A—Improved model
32— Head 32m
| Model No | Capacity (m3/h) |
Head (m) |
Suction (m) |
Speed (r/min) |
Self-priming performance (min/5m) |
Power (kw) | Diameter
(mm) |
Weight of Assembly
(kg) |
||
| Shaft | Motor | Inlet | Outlet | |||||||
| 80CYZ-A-22 | 40 | 22 | 6 | 2900 | 1.9 | 4.4 | 5.5 | 80 | 80 | 169 |
Please contact our technical support for more parameter list.
