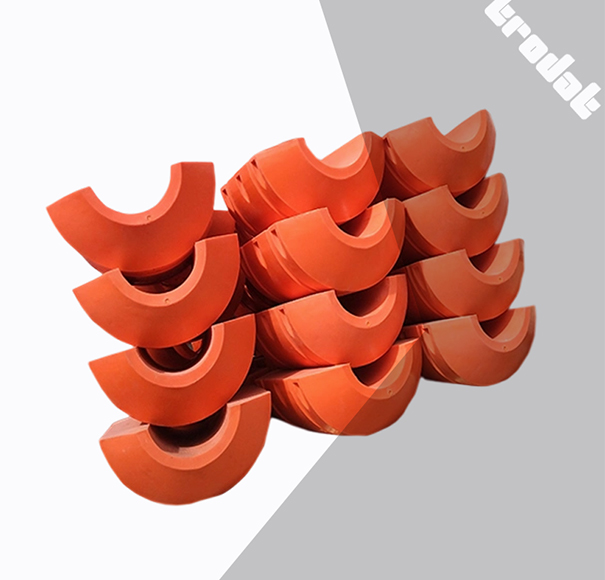

（1）MDPE floater is made of excellent flexibility of medium-density polyethylene material, inside of the shell is filled with high strength polyurethane foam.
（2）Pipeline protection
Pipeline buoys can protect pipelines by preventing them from colliding with underwater obstacles, being worn or being impacted by external forces.
Installation and maintenance
The pipeline float has a modular design and can be assembled and installed according to actual needs. lt can be quickly and easily installed on the pipeline. At the same time, it is more convenient for pipeline inspection and maintenance, which can be achieved by lifting or disassembling the float.
Environmental adaptability
The pipeline buoy can be adjusted and adapted according to environmental conditions such as water depth, tides,waves, etc.
Reusable
Pipeline floats can be used multiple times. When the pipeline needs to be replaced or repaired, the float can be removed and reinstalled on a new pipeline. This reusable feature can save costs and reduce the impact on the environment.
| HDPE Pipe | Floater | |||||||
| D (mm) | PN (mm) | Wall thickness (mm) | ID (mm) | OD (mm) | Length (mm) | Wall Thickness (mm) | Buoyancy (kg) | Weight (kg) |
| 110 | 8 | 5.3 | Φ120 | Φ300 | 600 | 5 | 35 | 16 |
| 250 | 8 | 11.9 | Φ250 | Φ800 | 900 | 7 | 380 | 48 |
| 400 | 8 | 19.1 | Φ410 | Φ1100 | 1250 | 7 | 930 | 92 |
| 500 | 8 | 23.9 | Φ560 | Φ1400 | 1500 | 8 | 1570 | 164 |
| 800 | 8 | 38.1 | Φ830 | Φ1800 | 2000 | 10 | 3805 | 356 |
| 1000 | 8 | 47.7 | Φ1060 | Φ2200 | 2500 | 10 | 5700 | 545 |
| Please contact us for more technical specification. |
