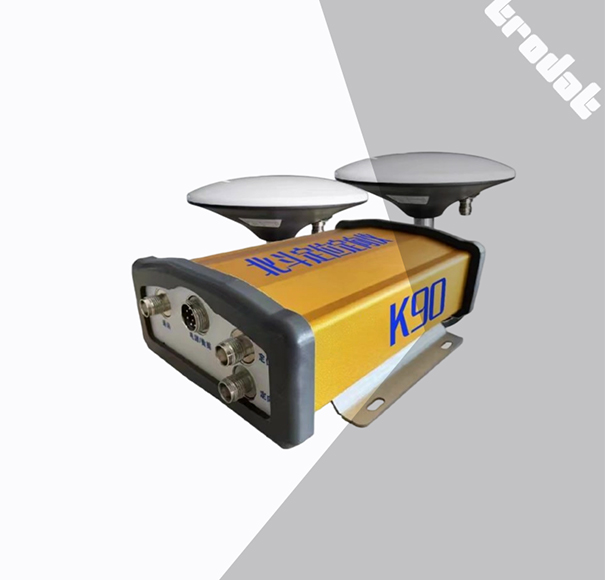

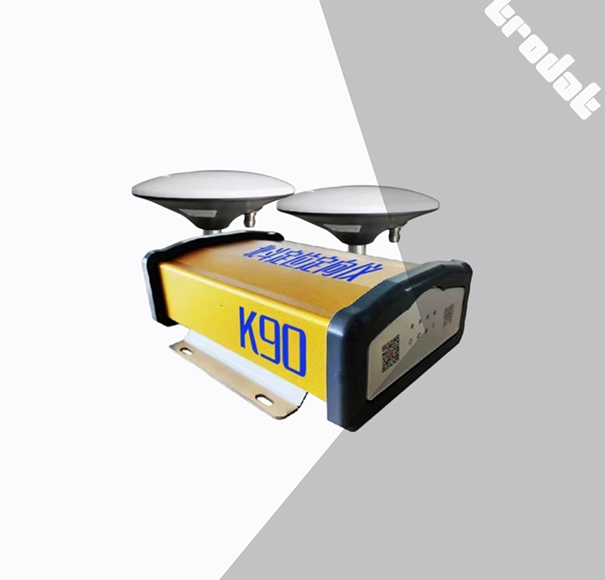

Our Dynamic Positioning System is widely used in dredgers, container ships, vessel navigation, pipe and cable laying, meteorological applications, and and sports vehicles. It provides real-time, high-precision position and heading information while receiving free differential signals. High accuracy: horizontal 0.01m/0.1m/0.5m, heading 0.02 degrees. The main unit employs dual-antenna technology for stable and reliable heading tracking. A single cable connects to the main unit for simple, convenient operation—just power on and use.
The Dynamic Positioning System integrates positioning and heading measurement, employing sophisticated mobile RTK technology to deliver high-precision location/bearing results. Compact and lightweight with extremely simple operation and installation, it serves as an indispensable maritime navigation assistant.
| Name | Type | Detailed Specifications | ||||||||||
| Accuracy Metrics | Signal Tracking | GPS:L1C/A,L1C,L1P,L2C,L2P,L5 BDS:B1I,B2I,B3I,B1C,B2a,B2b,ACEBOC GLONASS:G1,G2,G3 和 Galileo:E1,E5a,E5b,ALTBOC,E6 QZSS:L1C/A,L1C,L2C,L5,LEX ：SBAS和L-Band |
||||||||||
| Number of channel | 1100 Channel | |||||||||||
| SBAS Tracking | 3 channel，Parallel Tracking | |||||||||||
| Position Data Update Rate | 5Hz Standard，10Hz / 20Hz authorizable | |||||||||||
| Location Data Update Rate | 5Hz Standard，10Hz / 20Hz authorizable | |||||||||||
| Horizontal Position Accuracy |
|
|||||||||||
| Positioning Accuracy | 0.16° (rms,@ 0.5 m Antenna distance) 0.08° (rms,@ 1.0 m Antenna distance)
0.04° (rms,@ 2.0 m Antenna distance) 0.02° (rms,@ 5.0 m Antenna distance) |
|||||||||||
| Rolling Accuracy |
|
|||||||||||
| Time synchronization accuracy(1PPS) |
|
|||||||||||
| Cold start |
|
|||||||||||
| Position Lock |
|
|||||||||||
| Beacon Metrics | Number of channels | 12，Parallel Tracking SBAS：L1 C/A, L5 Support WASS, EGNOS and MSAS | ||||||||||
| Operating Mode |
|
|||||||||||
| Communication Metrics
|
Serial port |
|
||||||||||
| Differential Format | RTCM SC-104(SBAS/Beacon), Custom Difference Format ROX, RTCM2.x, RTCM3.x, CMR, CMR+ | |||||||||||
| Time synchronization output | 1PPS, COMS, High-level active, Rising edge synchronization, 10kΩ, 10pF Load | |||||||||||
| Data Format | NMEA0183，NMEA2000, Crescent Binary | |||||||||||
| Event ID Input | COMS,Low-active, falling edge synchronized,10kΩ,10pFLoad | |||||||||||
| NMEA Directional statements | $GPHDT, $GPROT | |||||||||||
| Environmental Parameters
|
Operating Temperature |
|
||||||||||
| Waterproof Rating | IP65 | |||||||||||
| Power Specifications
|
Input voltage | 12 DC or 220 V AC | ||||||||||
| Counter Electrode Protection |
|
|||||||||||
| Auxiliary equipment | Gyroscope | Provides smooth heading and rapid reacquisition of orientation. When GNSS signals are lost, it delivers up to 3 minutes of auxiliary heading guidance with accuracy better than 1°/min. | ||||||||||
| Tilt Sensor | Provides tilt and roll data to assist in rapid orientation and reorientation capture. | |||||||||||
| Mechanical Specifications Mechanical Specifications | Dimensions |
|
||||||||||
| Cable/Data Cable Length Cable/Data Cable Length | 10 M/15 M |
