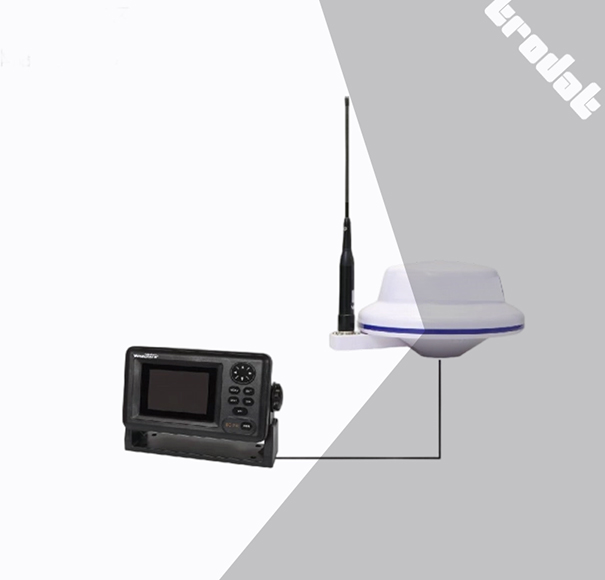

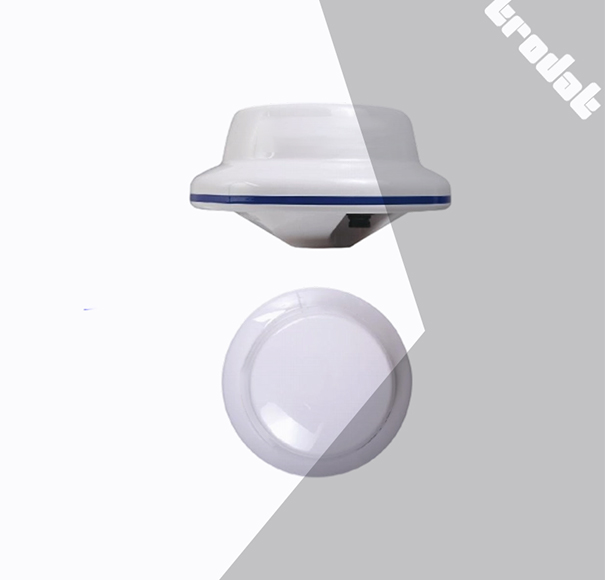

Global Navigation & Positioning Receiver(GN-61) is a multi-functional navigation receiver,it combines a variety of satelite positioning system and ship automatic collision avoidance system in one.This receiver is small and light weight, it’s very easy to install.The output signal is up to the international standard oflEC61 1 62-1 . lt can meet the requirements of the military ship and civilian ship’s navigation equipment.Currently, it is the only full-featured and multi-system positioning receiver.
Main features
Beidou 、GPS、GALILEO、GLONASS-Positioning function Satellite-Based Augmentation System(SBAS)-function Automatic ldentification System(AlS)-Positioning function
| Parameter Category | Specific Parameter | Details |
| Navigation parameter | Receive the number of satellites | 48pcs |
| Frequency | GPS/GALILEO/SBAS: L1:1575.42MHz C/A; Beidou(BD): B1 1561.098MHz; GLONASS: L1:1597.5 – 1609.5MHz; AIS: 162.0MHz | |
| Positioning accuracy | Plane surface: 2.5m; Add amended: 1m; Height: 2m; Speed: 0.05 m/s | |
| Positioning time | Cold boot: 45 seconds; Warm boot: 30 seconds; Recapture: 3 seconds | |
| Dynamic parameter | Speed: 500m/s; Elevation: 18000m; Acceleration: 5g | |
| Coordinate system | WGS – 84 | |
| Environmental parameter | Temperature | – 40°C ~ + 80°C |
| Relative humidity | 98% | |
| Electrical parameter | Supply voltage | 12VDC |
| Power dissipation | < 500Ma/12VDC | |
| Cable interface | 6 cable cores(6*0.3mm) 20m | |
| Interface parameter | Refresh rate | 1HZ |
| Baud rate | 38400 | |
| Protocol standard | The standard format of IEC61162 – 1(NMEA – 0183) | |
| Output interface | RS – 232,RS – 422 Dual output |
